I’m going to eventually get a 3d print of the zero angle shim from Code for the fuselage, but in the meantime I have a full set of their shims. Does anyone know what angle of shim is required to zero out their tail mount on the fuselage?
That’s all the info I have. Maybe you can find it on there.
1 Like
I occasionally use a flat mount KD Marlin on my Code fuses with no shims and my feet are in roughly the same position as my Code tails. Maybe a bit cleaner with their shim but seemed to work great.
Don’t think this will work in my case. I’ve been experimenting with no stab dock starts and it’s a pretty abrupt transition from my 120r. I’d like to try that credit card stab idea as an intermediate step, but the stock mount has way too much angle of attack and it’s hard to tell what flat even is.
I just sand down all the bits off on an AFS silk stab to fit the code pedestal and it felt terrible, my guess is that it’s not flat, or AFS is not flat. It didn’t feel like it had enough push.
Looks like code dropped the flat mount 3d print too?
I found somebody to 3d print me the code to flat shim, but before I was able to do that, I brought the code-to-flat STL model into CAD and measured the shim angle relative to their flat angle. I remember it being around 0.3 degrees, so I decided to use Codeʻs 0.25 shim which I did have on hand. Iʻve only used it with a credit card, so take this with a grain of salt, but it seemed fine. Try a 0.25 shim with your Silk stab and it might work.
1 Like
So I printed one of these and it was so worth it. I’ve always wondered why Code smallest surf stab is the relatively massive 142 and what a small stab would do
. Well wonder no more…

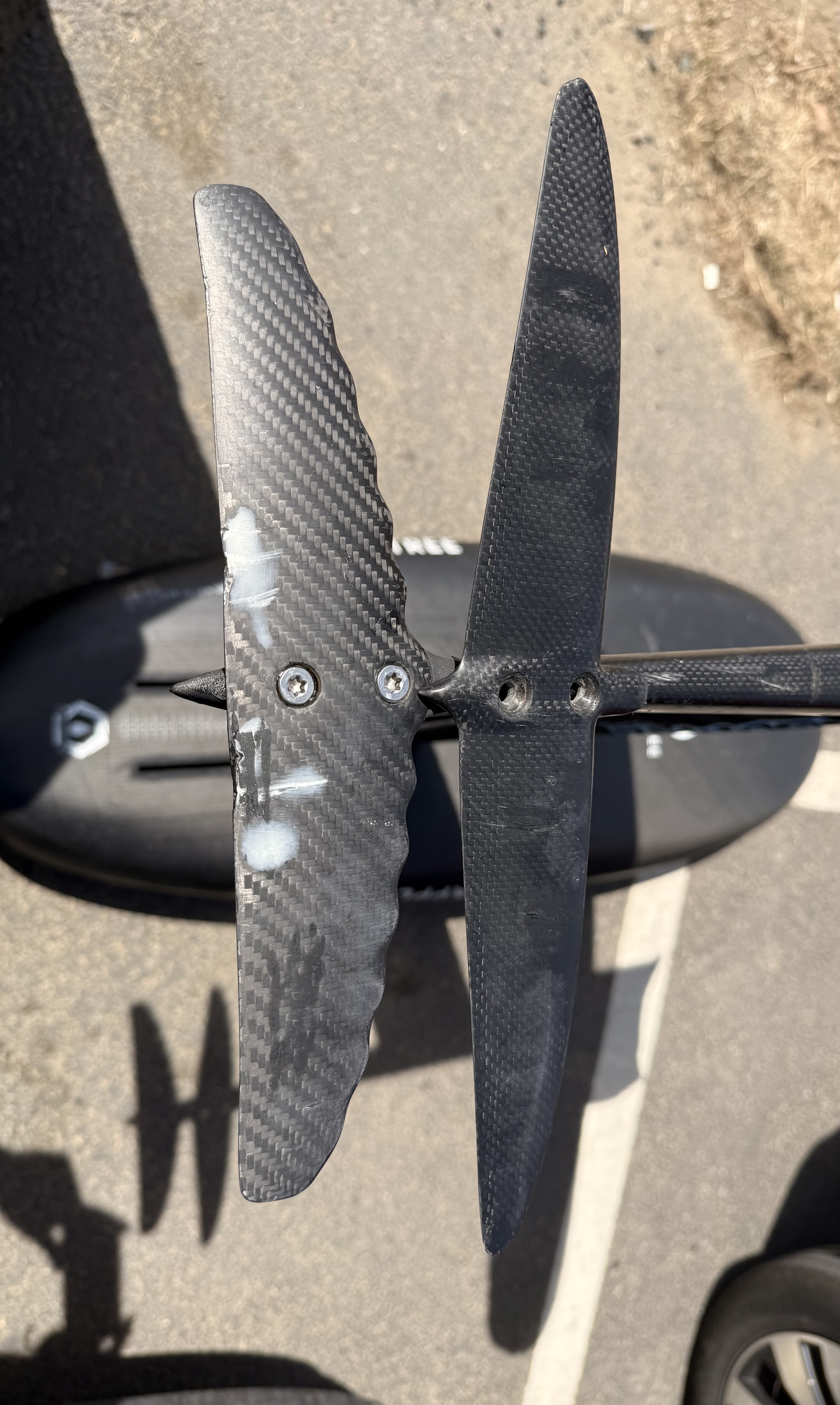

Myself and another code rider both absolutely loved it. For me it was the best prone session I’ve had on code. This is a chopped 132 AFS silk stab with the Code 3d print and a 150 to compare
This stab has always been my favourite on AFS and the takuma version of it was my favourite on Unifoil.. long fucking live this tail!!
It unlocked the roll and you can push through it in turns and blow it out a bit more easily and no loss of pump seemingly and just so fun and loose
3 Likes
Files, DM me if these go down:
